PUMS Demo

Introduction

This notebook demonstrates how to load US Census American Community Survey (ACS) Public-Use Microdata Samples. The process is very much parallel to how we loaded and used US Census redistricting data in the SoMa DIS Demo and Seeing White notebooks.

Imports and configuration

# So we can run from within the censusdis project and find the packages we need.
import os
import sys

sys.path.append(
    os.path.join(os.path.abspath(os.path.join(os.path.curdir, os.path.pardir)))
)

import os
import os.path

import pandas as pd

import censusdis.data as ced
import censusdis.geography as cgeo
import censusdis.states
from censusdis.maps import ShapeReader, clip_to_states

import divintseg as dis

# Set your API key here.
CENSUS_API_KEY = None

YEAR = 2020
DATASET = "acs/acs5/pums"

STATE = censusdis.states.STATE_MA

Query Metadata

First we will see what variables are avialable in the dataset.

group = ced.variables.get_group(DATASET, YEAR, None)

group.keys()

dict_keys(['for', 'in', 'ucgid', 'WKW', 'FBATHP', 'DRIVESP', 'WGTP23', 'WGTP22', 'WGTP25', 'WGTP24', 'RACNH', 'FWATP', 'WGTP21', 'WGTP20', 'WGTP27', 'WGTP26', 'WGTP29', 'WGTP28', 'FBROADBNDP', 'FDRATXP', 'FWKWNP', 'HOTWAT', 'FWKHP', 'FJWDP', 'WORKSTAT', 'FRACP', 'FFULP', 'WGTP34', 'WGTP33', 'WGTP36', 'PINCP', 'WGTP35', 'FPOBP', 'WGTP30', 'WGTP32', 'STOV', 'FMHP', 'WGTP31', 'RACAIAN', 'WGTP38', 'WGTP37', 'WGTP39', 'PUBCOV', 'SRNT', 'SEX', 'WGTP45', 'WGTP44', 'FACCESSP', 'WGTP47', 'DOUT', 'WGTP46', 'WGTP41', 'WGTP40', 'OTHSVCEX', 'WGTP43', 'RACPI', 'WGTP42', 'INDP', 'WGTP49', 'WGTP48', 'PRIVCOV', 'SFN', 'FINTP', 'HUPAC', 'SFR', 'WGTP50', 'FBLDP', 'WGTP56', 'WGTP55', 'WGTP58', 'WGTP57', 'WGTP52', 'WGTP51', 'DEAR', 'WGTP54', 'DIS', 'WGTP53', 'ACR', 'VACS', 'FINSP', 'WGTP59', 'FMILPP', 'MARHYP', 'ADJHSG', 'PAP', 'WGTP7', 'PWGTP30', 'WGTP6', 'PWGTP31', 'HINCP', 'WGTP5', 'PWGTP32', 'WKWN', 'WGTP4', 'PWGTP33', 'PWGTP34', 'PWGTP35', 'WGTP9', 'PWGTP36', 'WGTP8', 'WGTP3', 'WGTP2', 'RACWHT', 'WGTP1', 'GASP', 'PWGTP26', 'PWGTP27', 'PWGTP28', 'PWGTP29', 'FBDSP', 'FWKLP', 'FSCHP', 'FMARHTP', 'PWGTP20', 'PWGTP21', 'GRPIP', 'PWGTP22', 'PWGTP23', 'PWGTP24', 'PWGTP25', 'JWTRNS', 'FRNTMP', 'FOTHSVCEXP', 'CIT', 'LAPTOP', 'FMRGIP', 'JWRIP', 'PWGTP15', 'FCOMPOTHXP', 'PWGTP16', 'FSEMP', 'PWGTP17', 'PWGTP18', 'PWGTP19', 'ENG', 'FLANP', 'PWGTP10', 'PWGTP11', 'FCITWP', 'PWGTP12', 'PWGTP13', 'PWGTP14', 'FSSIP', 'FS', 'DIVISION', 'WRK', 'HICOV', 'DRATX', 'SMOCP', 'VPS', 'NWLA', 'FACRP', 'SCIENGRLP', 'FJWTRNSP', 'WGTP12', 'WGTP11', 'WGTP14', 'WGTP13', 'AGS', 'FSTOVP', 'WGTP10', 'WGTP19', 'WGTP16', 'WGTP15', 'WGTP18', 'WGTP17', 'FMARHWP', 'FTELP', 'PWGTP73', 'PWGTP74', 'QTRBIR', 'PWGTP75', 'FPERNP', 'PWGTP76', 'PWGTP77', 'PWGTP78', 'PWGTP79', 'PWGTP70', 'PWGTP71', 'PWGTP72', 'FDISP', 'PWGTP', 'WAGP', 'RWAT', 'PWGTP62', 'PWGTP63', 'PWGTP64', 'PWGTP65', 'PWGTP66', 'PWGTP67', 'PWGTP68', 'PWGTP69', 'FPLMPRP', 'TAXAMT', 'ANC2P', 'NWLK', 'PWGTP60', 'FPUBCOVP', 'PWGTP61', 'REGION', 'FMARHYP', 'FRETP', 'SMP', 'PWGTP59', 'FTENP', 'BLD', 'MAR', 'SMX', 'FVEHP', 'PWGTP51', 'PWGTP52', 'PWGTP53', 'PWGTP54', 'PWGTP55', 'GASFP', 'PWGTP56', 'PWGTP57', 'PWGTP58', 'VALP', 'PWGTP50', 'FDEYEP', 'FCITP', 'RACNUM', 'PWGTP48', 'PWGTP49', 'SPORDER', 'FANCP', 'PWGTP40', 'PWGTP41', 'DRAT', 'PWGTP42', 'PWGTP43', 'MRGI', 'ESP', 'PWGTP44', 'WGTP', 'PWGTP45', 'OCCP', 'ESR', 'PWGTP46', 'PWGTP47', 'FMRGP', 'MRGP', 'COW', 'TABLET', 'MRGX', 'MULTG', 'MRGT', 'PWGTP37', 'FOCCP', 'PWGTP38', 'PWGTP39', 'FREFRP', 'WGTP61', 'WGTP60', 'WGTP67', 'WGTP66', 'WGTP69', 'WGTP68', 'WGTP63', 'FRWATP', 'WGTP62', 'WGTP65', 'WGTP64', 'RAC1P', 'RNTM', 'DREM', 'MIGSP', 'FHICOVP', 'NWRE', 'FDIALUPP', 'RNTP', 'WGTP70', 'HUPAOC', 'WGTP72', 'WGTP71', 'WGTP78', 'MV', 'WGTP77', 'WGTP79', 'WGTP74', 'WGTP73', 'WGTP76', 'WGTP75', 'FAGSP', 'ANC', 'OIP', 'WGTP80', 'NP', 'NR', 'LNGI', 'ANC1P', 'HISPEED', 'PLM', 'RAC3P', 'OC', 'LANP', 'FLAPTOPP', 'FPRIVCOVP', 'LANX', 'HUPARC', 'FMVP', 'SVAL', 'PWGTP80', 'RWATPR', 'FWKWP', 'RAC2P', 'FPOWSP', 'SSP', 'R18', 'NAICSP', 'WATFP', 'RMSP', 'FDRATP', 'BDSP', 'FGASP', 'RESMODE', 'FSEXP', 'MHP', 'REFR', 'POWSP', 'FPLMP', 'JWAP', 'DIALUP', 'ELEFP', 'RELSHIPP', 'MIG', 'RC', 'MIL', 'WAOB', 'FHINS7P', 'RT', 'INTP', 'RACASN', 'FRELSHIPP', 'FHISPEEDP', 'FINDP', 'FPAP', 'JWMNP', 'FHINS6P', 'FKITP', 'INSP', 'ST', 'FFINCP', 'YBL', 'FINCP', 'YOEP', 'HINS6', 'FSMXHP', 'HINS7', 'FTABLETP', 'FLANXP', 'GRNTP', 'FCOWP', 'FJWMNP', 'HINS1', 'HINS2', 'HINS3', 'HINS4', 'HINS5', 'FDDRSP', 'FWAGP', 'FGRNTP', 'PUMA', 'FHINS5P', 'FSCHGP', 'FHINS5C', 'FVACSP', 'FHOTWATP', 'R60', 'FMARHDP', 'FMIGSP', 'R65', 'MARHT', 'FHINS4P', 'SERIALNO', 'DECADE', 'MARHW', 'MARHM', 'FGCRP', 'FHINS4C', 'PSF', 'RACSOR', 'NOC', 'POBP', 'CPLT', 'TYPEHUGQ', 'NOP', 'FSMARTPHONP', 'FULP', 'FHINS3P', 'SINK', 'KIT', 'FVALP', 'CONCAT_ID', 'JWDP', 'WKEXREL', 'DPHY', 'FWRKP', 'NPF', 'FHINS3C', 'FDEARP', 'NPP', 'FHINS2P', 'FRWATPRP', 'FSCHLP', 'MLPCD', 'FPARC', 'MIGPUMA', 'HUGCL', 'DDRS', 'MARHD', 'FMRGXP', 'SATELLITE', 'POVPIP', 'FULFP', 'BATH', 'WATP', 'GCM', 'FSATELLITEP', 'GCL', 'FHINS1P', 'WKHP', 'RECORD_TYPE', 'GCR', 'FRNTP', 'NRC', 'HFL', 'FSMP', 'ACCESSINET', 'ADJINC', 'FRMSP', 'POWPUMA', 'PARTNER', 'FELEP', 'CONP', 'FMIGP', 'FFSP', 'FGCMP', 'HISP', 'FESRP', 'HHL', 'AGEP', 'DEYE', 'SEMP', 'HHT', 'OCPIP', 'FGCLP', 'FENGP', 'SCHG', 'FTAXP', 'MSP', 'RACBLK', 'FMRGTP', 'FAGEP', 'SCHL', 'PWGTP9', 'FER', 'MLPFG', 'PWGTP8', 'NATIVITY', 'PWGTP7', 'SMARTPHONE', 'PWGTP6', 'FES', 'PWGTP5', 'PWGTP4', 'VEH', 'PWGTP3', 'FFERP', 'PWGTP2', 'PWGTP1', 'HHT2', 'FYOEP', 'FDREMP', 'NWAB', 'FCONP', 'FYBLP', 'FOIP', 'FHINCP', 'FHISP', 'BROADBND', 'NWAV', 'FDPHYP', 'PAOC', 'FFODP', 'FMARHMP', 'SSIP', 'FJWRIP', 'COMPOTHX', 'FSINKP', 'ELEP', 'FHFLP', 'WIF', 'FSMXSP', 'FOD2P', 'RETP', 'FSSP', 'PLMPRP', 'SCIENGP', 'CITWP', 'FMILSP', 'FPINCP', 'FOD1P', 'FMARP', 'SOCP', 'MLPE', 'MLPH', 'MLPA', 'FSMOCP', 'MLPB', 'FDOUTP', 'PERNP', 'WKL', 'SCH', 'TEL', 'TEN', 'MLPI', 'MLPJ', 'MLPK'])

group["AGEP"]

{'label': 'Age',
 'predicateType': 'int',
 'group': 'N/A',
 'limit': 0,
 'suggested-weight': 'PWGTP',
 'values': {'item': {'0': 'Under 1 year'},
  'range': [{'min': '1',
    'max': '99',
    'description': '1 to 99 years (Top-coded)'}]},
 'name': 'AGEP'}

Next we will see what geographies are available. Note that PUMS data is available in a lot fewer geography hierarchies than the full ACS5 data set.

cgeo.geo_path_snake_specs(DATASET, YEAR)

{'020': ['region'],
 '030': ['division'],
 '040': ['state'],
 '795': ['state', 'public_use_microdata_area']}

Query Age and its Suggested Weight at the PUMA Level

query_variables = ["AGEP"]

variable_weights = {
    variable: group[variable]["suggested-weight"] for variable in query_variables
}

unique_weights = list(set(variable_weights.values()))

df_acs5_pums = ced.download_detail(
    DATASET,
    YEAR,
    query_variables + unique_weights,
    state=STATE,
    public_use_microdata_area="*",
)

df_acs5_pums

	STATE	PUBLIC_USE_MICRODATA_AREA	AGEP	PWGTP
0	25	3900	46	14
1	25	3900	46	12
2	25	3900	12	13
3	25	302	52	14
4	25	302	21	17
...	...	...	...	...
335405	25	1300	25	38
335406	25	1300	26	32
335407	25	1300	23	33
335408	25	1300	53	27
335409	25	1300	64	20

335410 rows × 4 columns

# Reformat and rename for easier merging with the map later.
df_acs5_pums["PUMACE"] = df_acs5_pums["PUBLIC_USE_MICRODATA_AREA"].apply(
    lambda p: f"{int(p):05d}"
)

Compute Average Age in Each Area

df_average_age = (
    df_acs5_pums.groupby("PUMACE")
    .apply(
        lambda g: (g["AGEP"] * g[variable_weights["AGEP"]]).sum()
        / g[variable_weights["AGEP"]].sum()
    )
    .rename("avg_age")
    .reset_index()
)

Load map data and merge in our PUMS data

SHAPEFILE_ROOT = os.path.join(os.environ["HOME"], "data", "shapefiles")

# Make sure it is there.
if not os.path.isdir(SHAPEFILE_ROOT):
    os.mkdir(SHAPEFILE_ROOT)

reader = ShapeReader(SHAPEFILE_ROOT, year=YEAR)

gdf_puma = reader.read_shapefile(STATE, "puma")

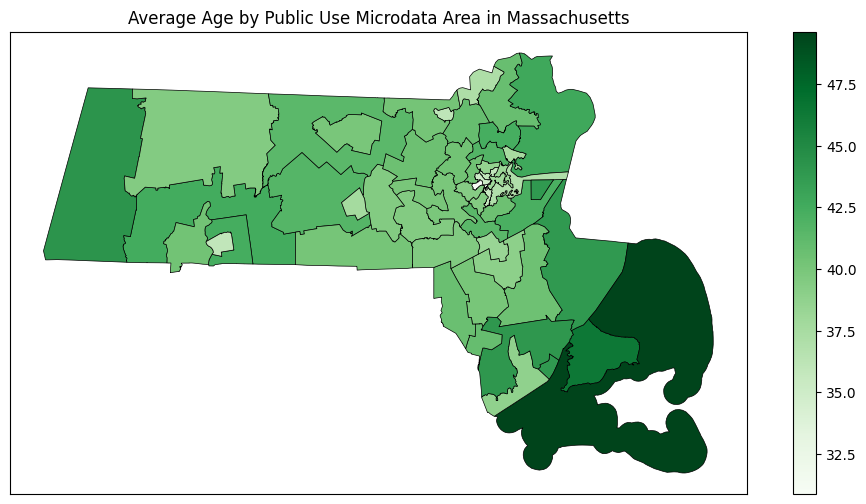

Plot the Map

gdf_avg_age = gdf_puma.merge(df_average_age, left_on="PUMACE10", right_on="PUMACE")

import matplotlib.pyplot as plt

plt.rcParams["figure.figsize"] = (12, 6)

ax = gdf_avg_age.plot(
    "avg_age", cmap="Greens", edgecolor="black", legend=True, linewidth=0.5
)

ax.set_title(
    f"Average Age by Public Use Microdata Area in {censusdis.states.STATE_NAMES_FROM_IDS[STATE]}"
)

ax.tick_params(
    left=False,
    right=False,
    bottom=False,
    labelleft=False,
    labelbottom=False,
)
