ACS Demo

Introduction

This notebook demonstrates how to load US Census American Community Survey (ACS) 5-year data and do demographic analysis on it. The process is very much parallel to how we loaded and used US Census redistricting data in the SoMa DIS Demo and Seeing White notebooks.

Imports and configuration

[1]:

# So we can run from within the censusdis project and find the packages we need.
import os
import sys

sys.path.append(
    os.path.join(os.path.abspath(os.path.join(os.path.curdir, os.path.pardir)))
)

[2]:

import censusdis.data as ced
import censusdis.states
from censusdis.maps import ShapeReader, clip_to_states

import divintseg as dis

[3]:

# Set your API key here.
CENSUS_API_KEY = None

[4]:

SHAPEFILE_ROOT = os.path.join(os.environ["HOME"], "data", "shapefiles")

# Make sure it is there.
os.makedirs(SHAPEFILE_ROOT, exist_ok=True)

ced.set_shapefile_path(SHAPEFILE_ROOT)

[5]:

YEAR = 2019
DATASET = "acs/acs5"

[6]:

# Feel free to try other states.
STATE = censusdis.states.STATE_NJ

Make a metadata call to find out what fields are available

The group we chose is B03002, which has race and ethnicity estimates down to the census block group level.

[7]:

GROUP = "B03002"

[8]:

leaves = ced.variables.group_leaves(DATASET, YEAR, GROUP)

Load the data and compute diversity and integration

[9]:

df_acs5 = ced.download_detail(
    DATASET,
    YEAR,
    leaves,
    state=STATE,
    block_group="*",
    api_key=CENSUS_API_KEY,
)

[10]:

df_di = dis.di(
    df_acs5,
    by=["STATE", "COUNTY", "TRACT"],
    over="BLOCK_GROUP",
).reset_index()

df_di.head()

[10]:

	STATE	COUNTY	TRACT	diversity	integration
0	34	001	000100	0.799079	0.742759
1	34	001	000200	0.774784	0.701973
2	34	001	000300	0.781342	0.726768
3	34	001	000400	0.765627	0.687127
4	34	001	000500	0.695903	0.685162

Add geography to our dataframe

[11]:

gdf_di = ced.add_inferred_geography(df_di, YEAR)

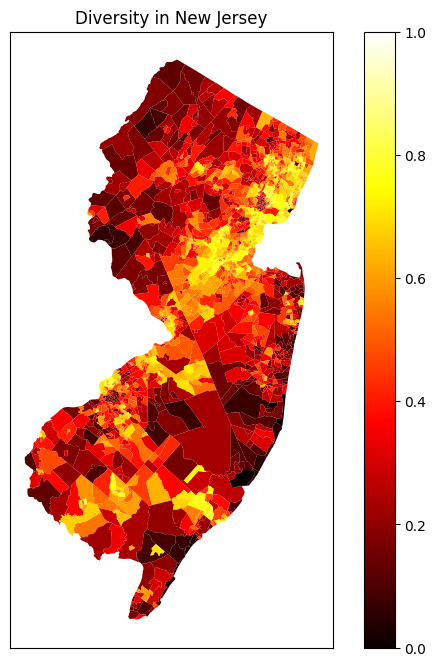

Plot the data for the state

[12]:

import matplotlib.pyplot as plt

plt.rcParams["figure.figsize"] = (8, 8)

ax = gdf_di.plot(
    "diversity",
    cmap="hot",
    legend=True,
    vmin=0.0,
    vmax=1.0,
)

ax.set_title(f"Diversity in {censusdis.states.STATE_NAMES_FROM_IDS[STATE]}")

ax.tick_params(
    left=False,
    right=False,
    bottom=False,
    labelleft=False,
    labelbottom=False,
)

[ ]:
