Nationwide Diversity and Integration

This notebook pulls together the main features of the censusdis and divintseg projects to demonstrate how quickly and easily we can

1. Identify US Census data variables.

   • We will use metadata calls to identify 16 race and ethnicity variables.

2. Download the variables for the entire country at the block group level.

   • There are almost 240,000 census block groups in the 50 states and DC.

   • We will download all 16 variables for all of them

3. Compute diversity and integration metrics at the census tract level.

   • There are over 84,000 census tracts in the 50 states and DC.

   • Integration expresses how integrated the block groups within a tract are.

4. Attach geography bounds to all the census tracts.

   • This process will transparently download and cache census map data on a state by state basis.

   • censusdis will determine how to do this and manage the process. No user input is required.

5. Download state boundaries.

   • This is simply to make our final maps look better.

6. Plot maps showing nationwide diversity and integration.

   • Data is plotted at the census tract level

   • Alaska and Hawaii are automatically relocated on the map to better use output real estate

   • The state boundaries are plotted to make the maps more readable.

Even in a fresh python environment with no data pre-cached locally, this entire process can be run on a fairly standard laptop with a high-speed internet connection in a jsut a few minutes.

For more details, please refer to the README files and other documentation in the `censusdis <https://github.com/vengroff/censusdis>`__ and `divintseg <https://github.com/vengroff/divintseg>`__ projects.

0. Imports and configuration

# So we can run from within the censusdis project and find the packages we need.
import os
import sys

sys.path.append(
    os.path.join(os.path.abspath(os.path.join(os.path.curdir, os.path.pardir)))
)

import censusdis.data as ced
import censusdis.maps as cem
from censusdis.states import ALL_STATES_AND_DC

import divintseg as dis

# Fill in your own key here, or leave as is
# if you are doing low volume queries that
# will not hit the census server usage limits.
CENSUS_API_KEY = None

1. Identify the dataset and variables we will use

DATASET = "acs/acs5"
YEAR = 2020

GROUP = "B03002"

leaves = ced.variables.group_leaves(DATASET, YEAR, GROUP)

len(leaves)

16

2. Download the data

%%time

df_bg = ced.download_detail(
    DATASET,
    YEAR,
    leaves,
    state=ALL_STATES_AND_DC,
    block_group="*",
    api_key=CENSUS_API_KEY,
)

CPU times: user 1.39 s, sys: 188 ms, total: 1.58 s
Wall time: 17.8 s

df_bg.shape

(239780, 20)

3. Compute diversity and integration

%%time

df_di = dis.di(
    df_bg,
    by=["STATE", "COUNTY", "TRACT"],
    over="BLOCK_GROUP",
).reset_index()

CPU times: user 1min 1s, sys: 425 ms, total: 1min 1s
Wall time: 1min 2s

df_di.shape

(84414, 5)

4. Infer the geographies so we can plot

%%time

gdf_di = ced.add_inferred_geography(df_di, YEAR)

CPU times: user 2.95 s, sys: 88.6 ms, total: 3.04 s
Wall time: 3.04 s

5. Get state boundaries for the plots

%%time

gdf_states = cem.ShapeReader(year=YEAR).read_cb_shapefile("us", "state")

gdf_states = gdf_states[gdf_states.STATEFP.isin(ALL_STATES_AND_DC)]

CPU times: user 65.4 ms, sys: 3.4 ms, total: 68.8 ms
Wall time: 68.2 ms

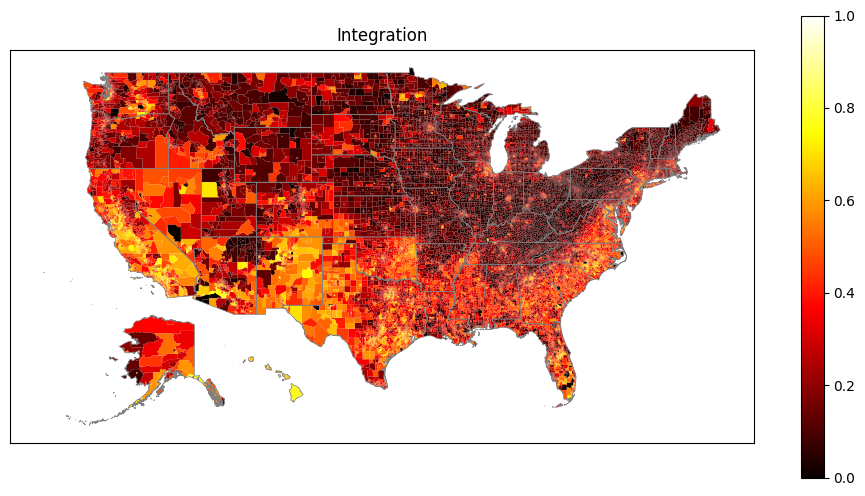

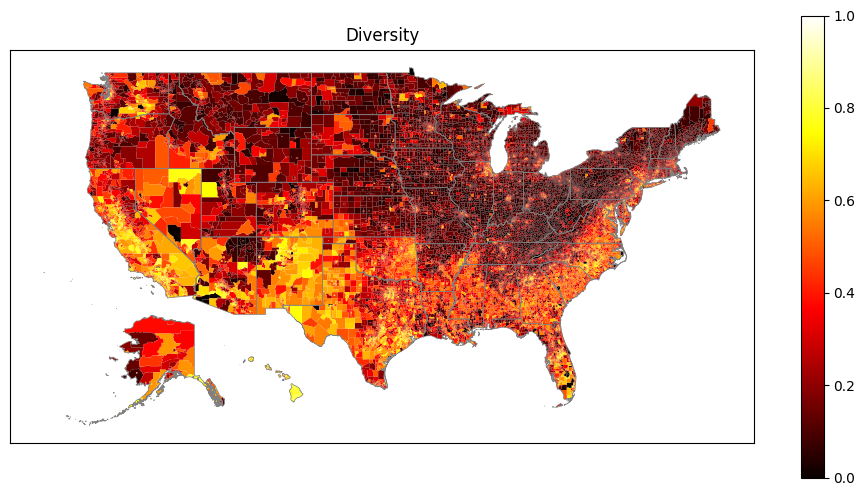

6. Plot diversity and integration

%%time

for col in ["diversity", "integration"]:
    ax = cem.plot_us(
        gdf_di[gdf_di.geometry != None],
        col,
        cmap="hot",
        legend=True,
        figsize=(12, 6),
        vmin=0.0,
        vmax=1.0,
    )

    ax = cem.plot_us_boundary(gdf_states, edgecolor="gray", linewidth=0.5, ax=ax)

    ax.set_title(col.title())

    ax.tick_params(
        left=False,
        right=False,
        bottom=False,
        labelleft=False,
        labelbottom=False,
    )

CPU times: user 19.8 s, sys: 168 ms, total: 20 s
Wall time: 19 s
